Chain Home Extra Low

Type 14 CHEL/GCI

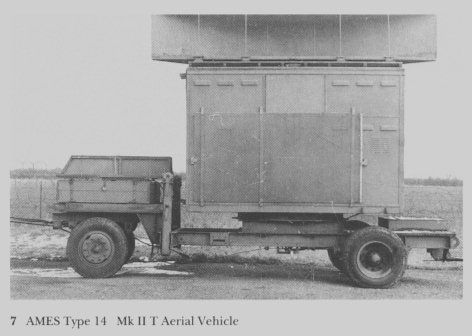

Type 14 Mk II mobile aerial (photo - Watching The Skies) The Type 14 CHEL/GCI was a 10 centimeter radar and the first Type 14 was working at Sandwich in January 1944. The development of the Type 14 arose because the Type 7 metric GCI radar had been subject to both electronic and window jamming and could not detect very low flying aircraft. The simplest way around the problem was to modify the Type 13 Centimetric Height (CMH) equipment by mounting its aerial horizontally, instead of vertically, and rotate it horizontally. Earlier marks used twin "cheese" antennas (note: after examining the original it appears that the top "cheese" has been "cropped" in this photo!) and the only differences between Mk's II, III, IV and V were in the operational facilities. In 1944 a new antenna was designed for the Mk VI consisting of 1/2 inch steel tubes at a separation of 1 and 1/4 inches in the shape of a horizontal cylindrical paraboloid. It was fed by a linear waveguide slotted feed.

Type 14 centimetric radar at East Fortune (photo- Dick Barrett)The Mk VI antenna measured 25 feet by 8 feet, giving a much better range performance over earlier marks. The horizontal beamwidth was 1o and the vertical beamwidth was 3o. Coverage within the beam was good though somewhat limited in the vertical plane. To get around this two versions were manufactured, one for low cover and the other, tilted back, to provide cover at higher angles. The first models of the Type 14 gave good low cover. Bomber aircraft were detected at 20 miles when flying at 50 feet above the sea and at 50 miles when flying at 1000 feet. At 6000 feet the detection range was 90 miles. Bearing and range accuracy were good. (Watching The Skies).

Type 14 Mk VI centimetric radar (photo - Anstruther)Type 14 centimetric radar at East Fortune (photo - Dick Barrett)Some impression of the size of the Type 14 Mk VI antenna can be gained from the colour picture that features me on the right hand side. I am 1.8 metres (6 feet) high. There is also someone standing on the extreme right of the service platform in the black and white photograph. I took the colour photographs at the aviation  museum at East Fortune airfield in 1989. The radar transmitter/receiver is housed in the "hut" at the rear of the reflector and which rotated with the antenna. The linear feed array is housed in a clear plastic tube that is mounted horizontally across the face of the reflector.

An interesting experimental modification comprised of attaching two Type 14 Mk VI antennae end to end and with many modifications to the electronic equipment became the basis for the development of the Type 80 radar.

The typical characteristics of the Mk VI were:

Peak power:

500 Kw

Pulse length:

0.6 or 1.9 us

P.R.F.:

500 pps

Frequency

3 GHz (10 cm)
